Digital Imaging Plate Scanner for Dental | Fast, Lightweight, and High-Resolution PSP X-Ray Imaging

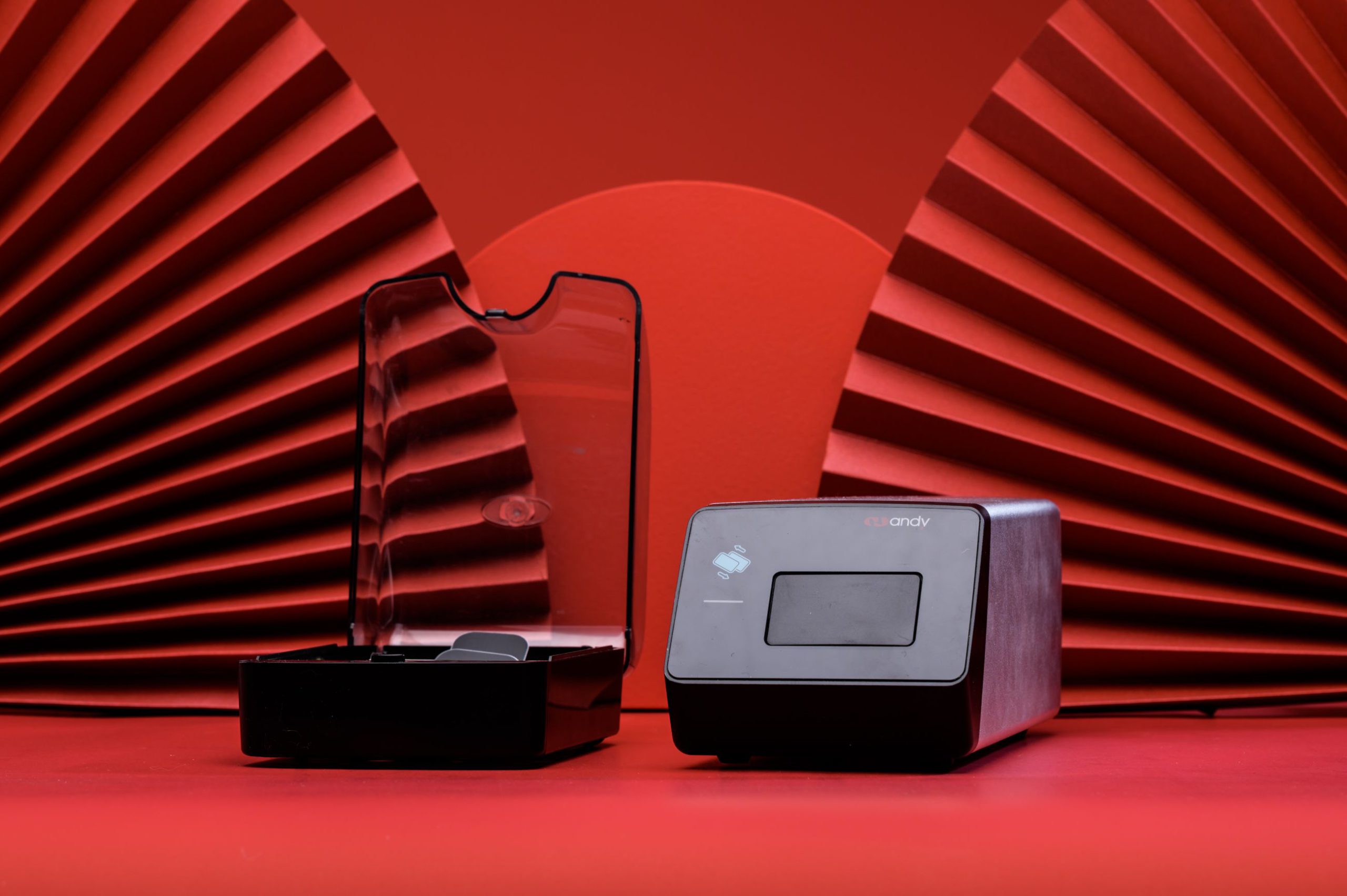

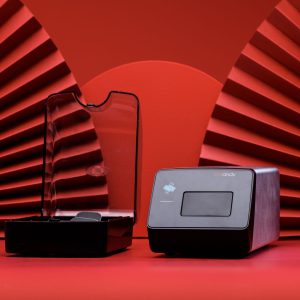

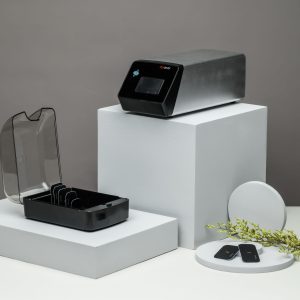

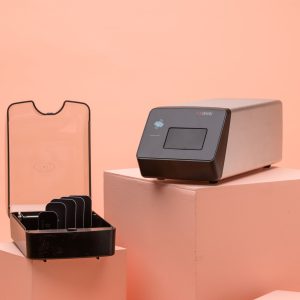

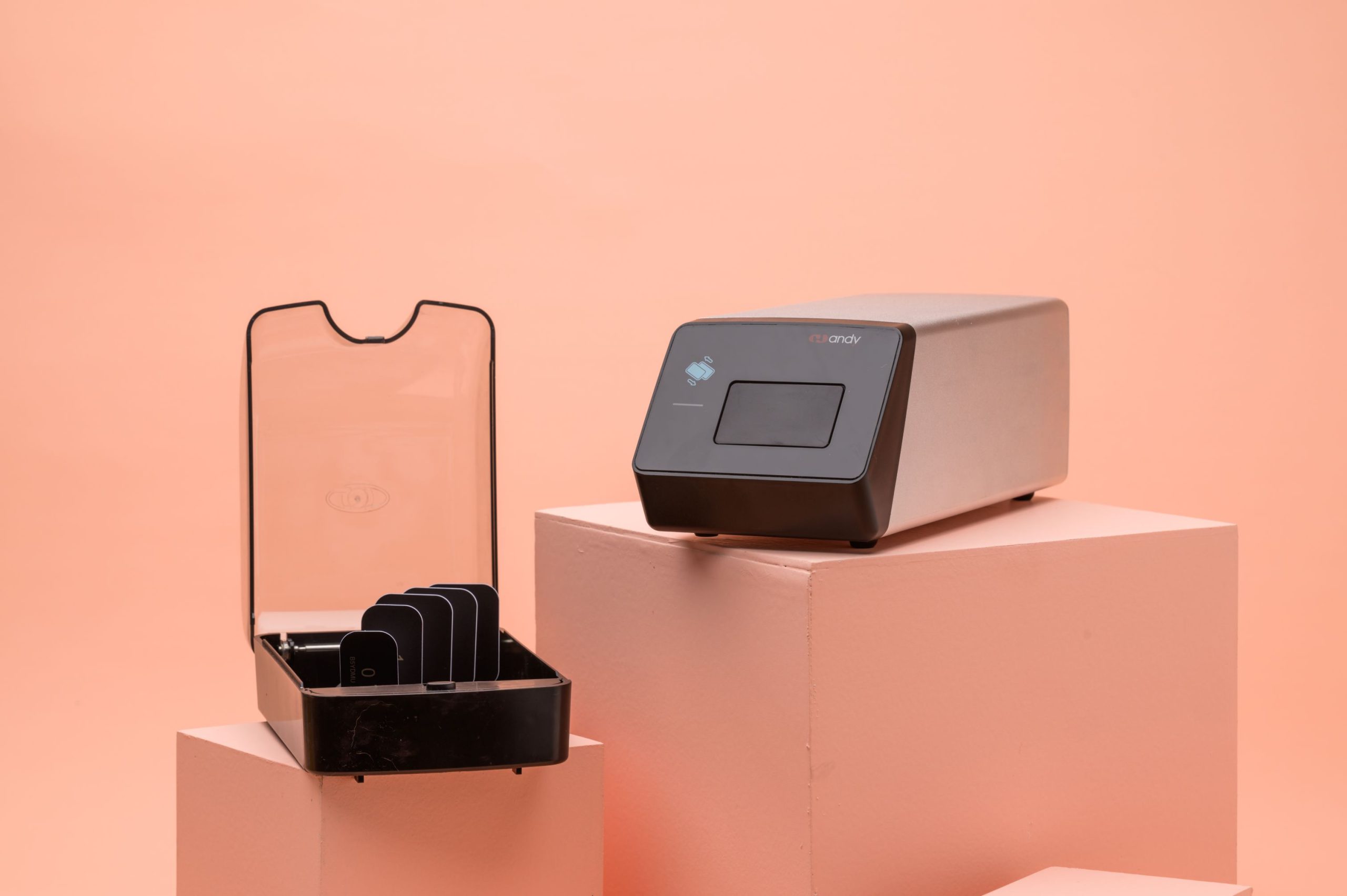

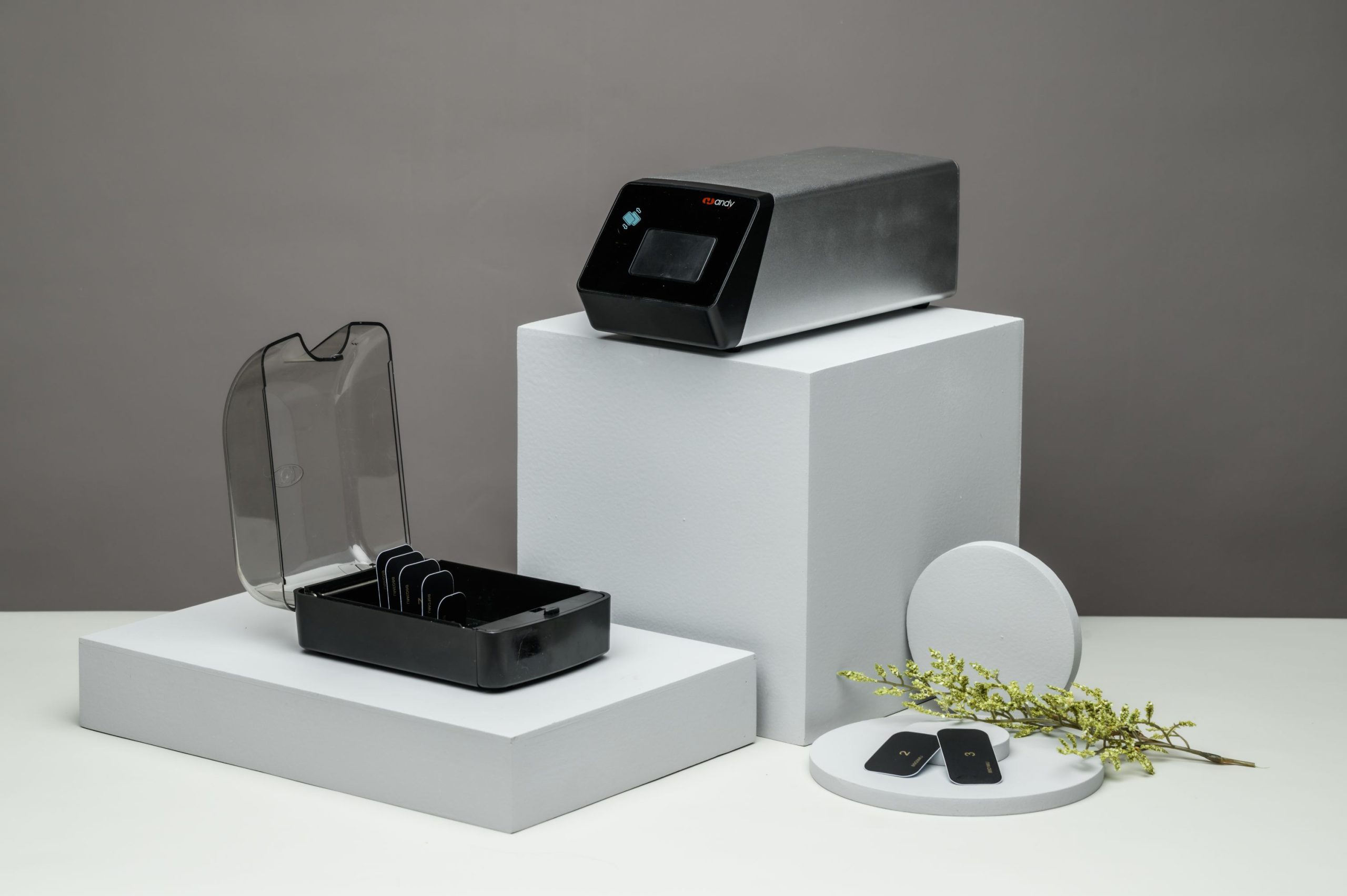

Boost your clinic’s diagnostic capabilities with the Digital Imaging Plate Scanner, engineered for dental professionals who value speed, precision, and portability. Weighing just 1.4 kg and designed with a compact aluminum alloy body, this scanner is perfect for mobile use between clinics or chairside applications.
With a fast scan time of just 3–4.5 seconds, this device significantly improves workflow efficiency. Equipped with a high-speed, high-sensitivity photoelectric sensor, it delivers crystal-clear intraoral images using reusable phosphor storage plates (PSPs) across multiple standard sizes.
Key Features:
-
Ultra-Portable Design
Lightweight (~1.4 kg) and compact (21.8×8×8 cm), making it easy to move between operatories or clinics. -
Fast Scanning Time
Achieves scan times in just 3–4.5 seconds, with full imaging completed in under 6 seconds — ideal for busy practices. -
Advanced Photoelectric Sensor
Offers high-speed, high-sensitivity image capture with a small laser spot size of 35μm. -

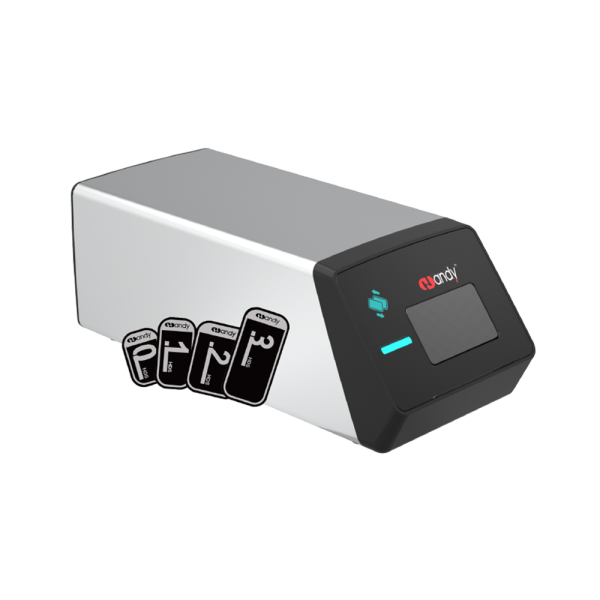

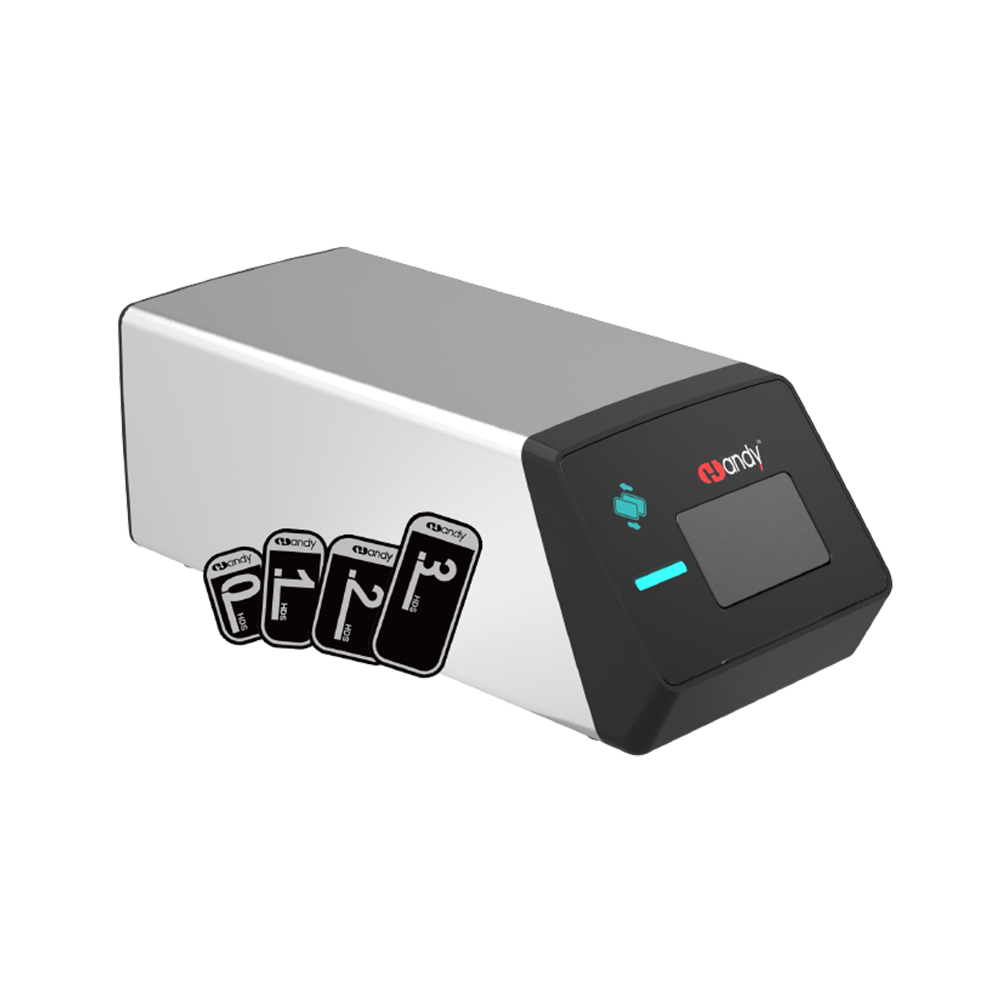

Multiple Plate Sizes Supported
Compatible with PSP Sizes 0 to 3:-
Size 0: 22×32 mm
-
Size 1: 22×40 mm
-
Size 2: 31×41 mm
-
Size 3: 27×54 mm
-
-
High-Resolution Output
Pixel size: 30×30μm | Image resolution: 10 lp/mm | 14-bit grayscale for superior image depth -

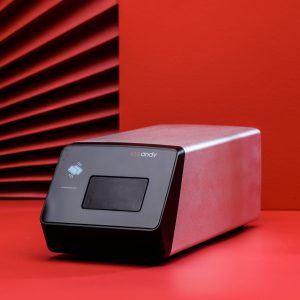

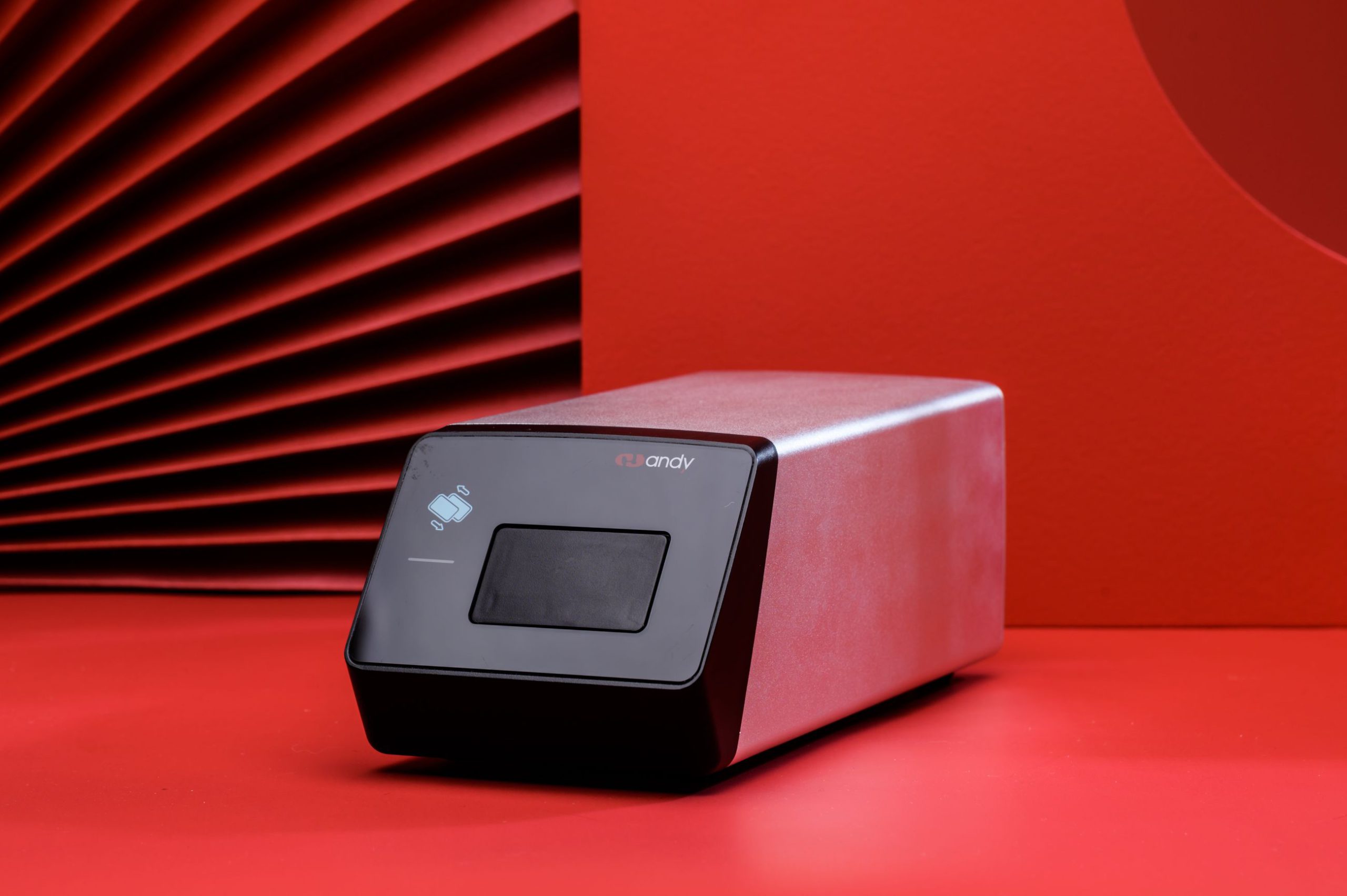

Durable & Modern Design
Built with a sleek aluminum alloy casing and touch-button interface for easy, long-term use. -
Full Compatibility & Connectivity
Supports TWAIN driver and connects via USB 2.0 to Windows 7/10/11 (32 & 64-bit) -
Low Power Consumption
Operates on 10W power with a 12V supply, ensuring energy efficiency.
Ideal for general diagnostics, pediatric dentistry, and endodontics, the Digital Imaging Plate Scanner is the smart choice for modern dental imaging — delivering sharp results, faster.
