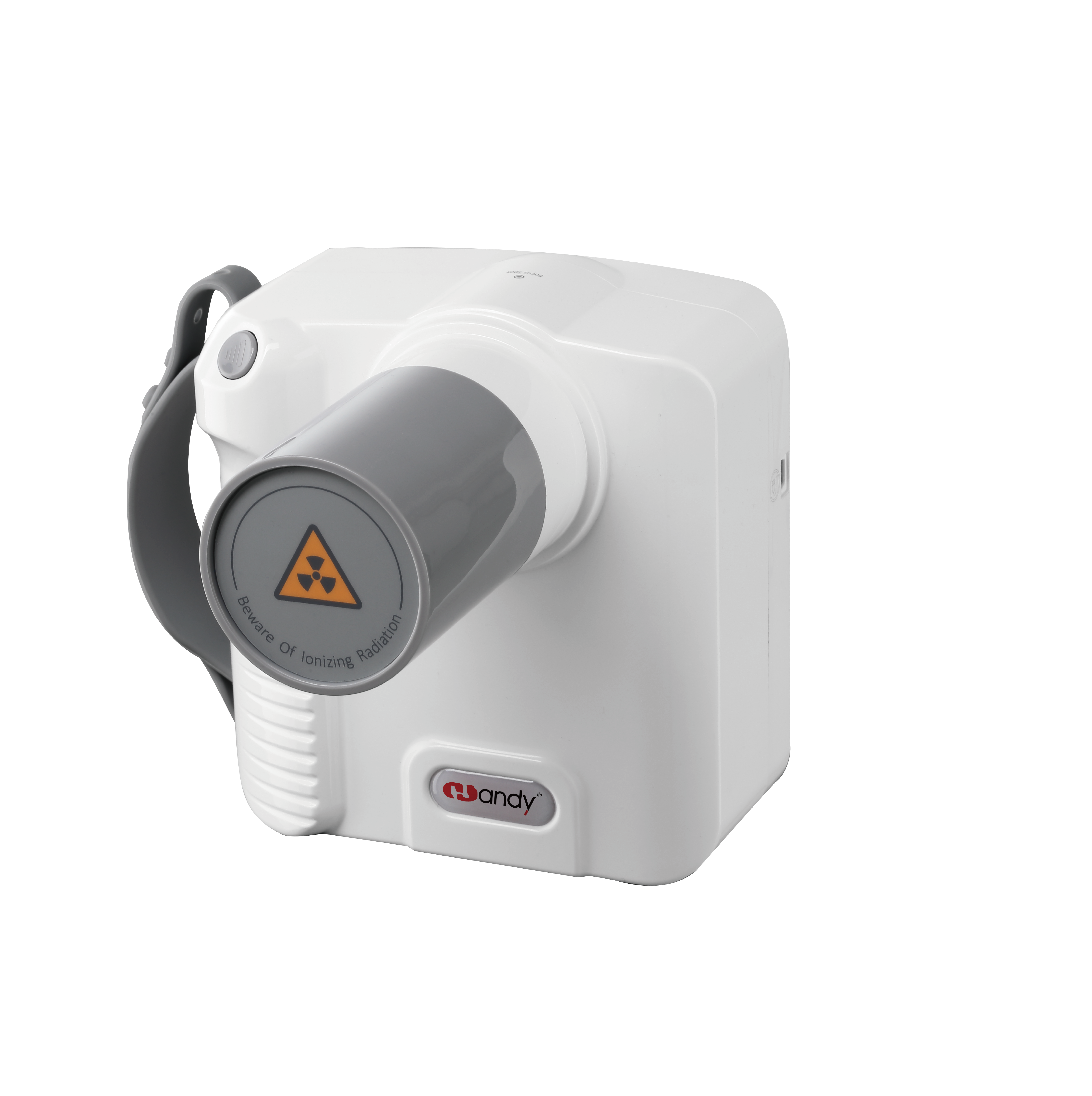

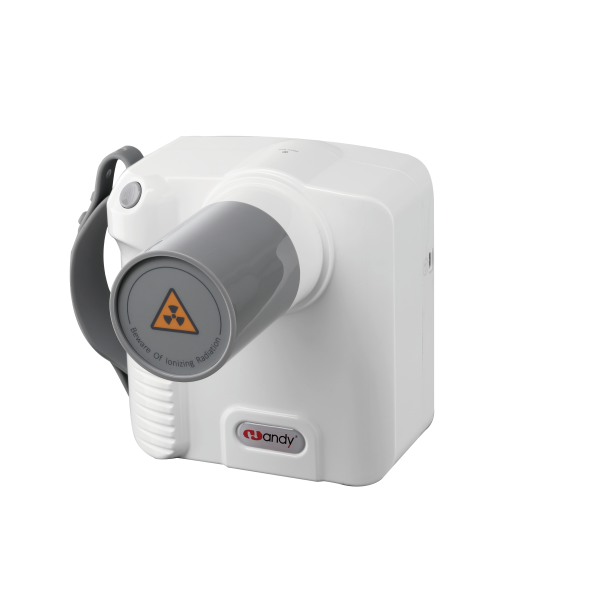

High-Frequency Portable Dental X-Ray Unit | Compact, Low Radiation, Clear Imaging
Upgrade your dental diagnostic workflow with this high-frequency portable X-ray unit, designed for superior image quality with reduced radiation exposure. Utilizing a Canon micro-focus tube from Japan (0.4mm focal point, 12.5° anode angle), the device delivers sharp and detailed images in just 0.4 seconds—minimizing motion blur and patient discomfort.
With components imported from South Korea, this X-ray machine ensures stable image output even when battery power is low. It supports both chair-mounted and handheld operation, offering flexibility and ease of use across multiple dental scenarios. Lightweight, compact, and simple to operate with a single hand, it is an ideal choice for modern dental practices looking for a reliable, portable X-ray imaging solution.
Key Features:
-
High-Frequency DC X-Ray
Delivers superior image quality with less radiation exposure for patients and staff. -
Dual Operation Modes

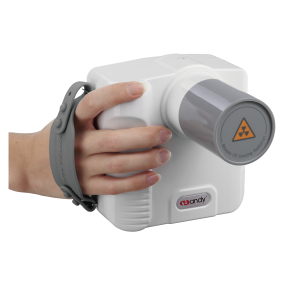

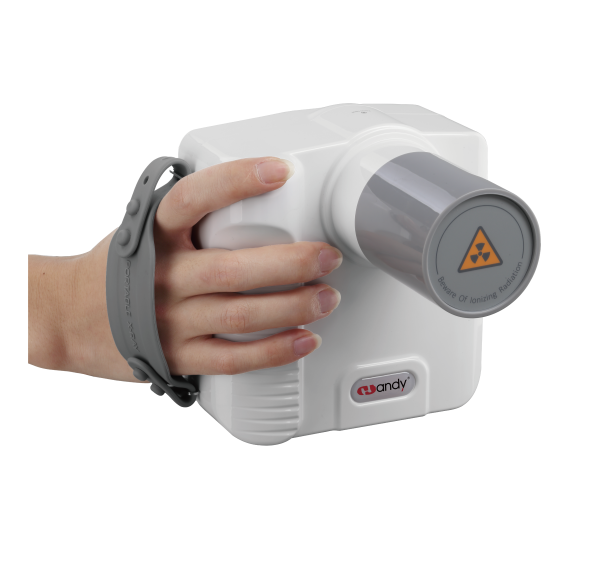

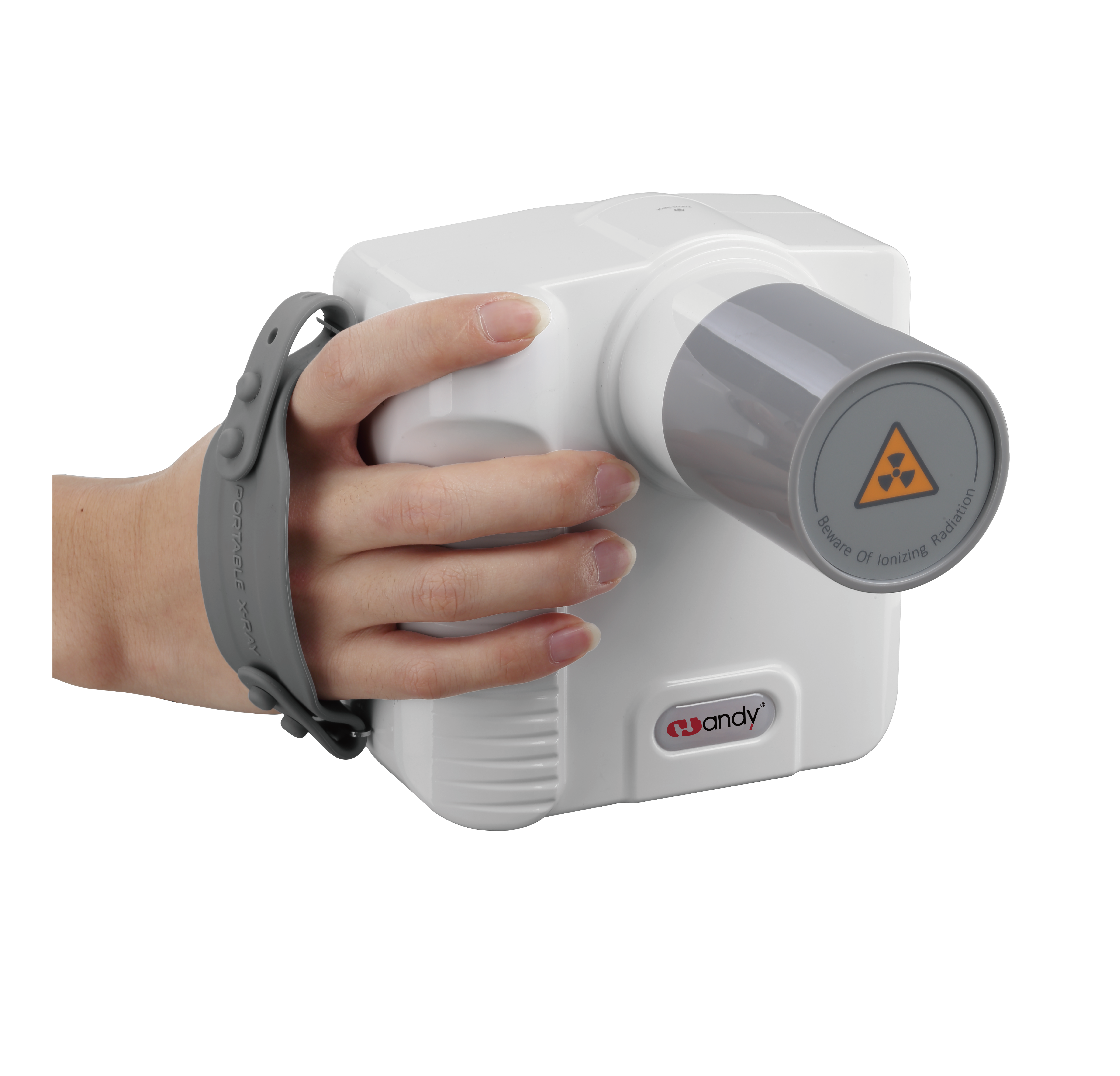

Can be mounted on a dental chair or used as a handheld device for quick, on-the-go imaging. -
Canon Micro-Focus Tube (Japan)
Equipped with a 0.4mm focal spot and 12.5° anode angle, ensuring precise and clear images. -
Fast Exposure Time: Only 0.4 Seconds
Shorter exposure time compared to standard portable X-ray units (5–8x faster), reducing image blur and radiation dose. -
Smart High-Frequency Control Circuit
Korean-imported closed-loop system maintains consistent image quality—even when battery is low. -
Lightweight & Compact Design
Weighs just 1.9 kg with simple single-hand operation, making it ideal for mobile or multi-room use. -
User-Friendly Digital Display
Intuitive controls with a bright digital interface for smooth operation. -
Long Battery Life
Up to 500 shots on a full charge—perfect for busy clinical environments. -
Built with Quality Assurance
Manufactured using high-grade materials with reliable performance and durability.
Technical Specifications:
-
Tube Voltage: 70kV ±10%
-
Tube Current: 2mA ±20%
-
Exposure Time: 0.04s – 2.0s
-
Focus Size: 0.4mm
-
Anode Angle: 12.5°
-
Power Input: 100V–240V (50–60Hz)
-
Radiation Leakage: ≤0.25 mGy/h @ 1m
-
Relative Humidity: 30% RH – 75% RH
-
Net Weight: 1.9 kg
-
Gross Weight: 4 kg
This portable dental X-ray unit is the perfect blend of performance, portability, and protection, designed to meet the evolving needs of today’s dental professionals.
